MICROCONTROLLER TRAINER KIT

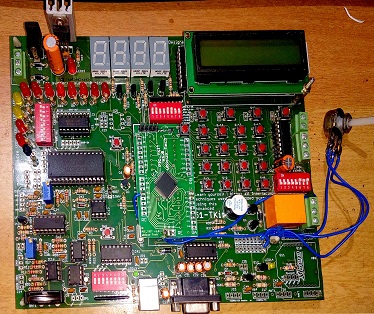

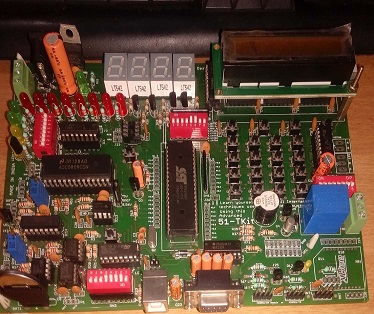

8051 TRAINER KIT
PIC TRAINER KIT
8051 TRAINER KIT
Easily adaptable for any type of 8051 projects
More user friendly, highly practical oriented and informative Trainer Kit architecture for college labs while compared to other traditional designs
Compatible for all 40 pin 8051/8052 versions
Built-in USB based ISP programmer (for AT89S51,S52, 51RD2)
GPIO implementation techniques
Output Port pin expansion using Serial Shift registers
Selectable 4-bit LCD & 4-digit, 7segment LED display interfaces
4x4 Matrix keypad & 4 individual switch interfacing
multiplexed Serial Communication options for
UART, USB, RS232 interfaces
Wireless options like 433MHz RX-TX, Zigbee, Bluetooth modules etc (NB: wireless modules are not included with the package)
I2C communication based on the RTC & EEPROM ICs
DC-Motor , Stepper Motor interfacing with L293D driver IC
Analog Interfacing techniques with
various Opamp configuration like Instrumentation (differential), Inverting, Non-Inverting amplifier , Voltage Follower etc
8-bit ADC Parallel Interfaced ADC
12-bit SPI interfaced ADC
Onboard LM35 sensor, 2.56Vref generation etc
All the multiplexed features are easily selectable via DIP Slide switches
Onboard 5V, 3.3V regulators with external 12V@1A power adapter
Onboard 5V TTL to 3.3V TTL , bidirectional communication converter
Suitable for Robotics Implementation
Everything arranged on a Spacious , double sided PCB
Fully documented Tutorials, Source code files
PIC TRAINER KIT
Easily adaptable for any type of PIC projects
More user friendly, highly practical oriented and informative Trainer Kit architecture for college labs while compared to other traditional designs
Built-in USB based ISP programmer
GPIO implementation techniques
Output Port pin expansion using Serial Shift registers
Selectable 4-bit LCD & 4-digit, 7segment LED display interfaces
4x4 Matrix keypad & 4 individual switch interfacing
multiplexed Serial Communication options for,
UART, USB, RS232 interfaces
Wireless options like 433MHz RX-TX, Zigbee, Bluetooth modules etc (NB: wireless modules are not included with the package)
I2C communication based on the RTC & EEPROM ICs
DC-Motor , Stepper Motor interfacing with L293D driver IC
PWM Based Speed Controlling
Analog Interfacing techniques with
various Opamp configuration like Instrumentation (differential), Inverting, Non-Inverting amplifier , Voltage Follower etc
8-bit ADC Parallel Interfaced ADC
12-bit,18-bit SPI interfaced ADC
Onboard LM35 sensor, 2.56Vref generation etc
All the multiplexed features are easily selectable via DIP Slide switches
Onboard 5V, 3.3V regulators with external 12V@1A power adapter
Onboard 5V TTL to 3.3V TTL , bidirectional communication converter
Suitable for Robotics Implementation
Everything arranged on a Spacious , double sided PCB
Fully documented Tutorials, Source code files
